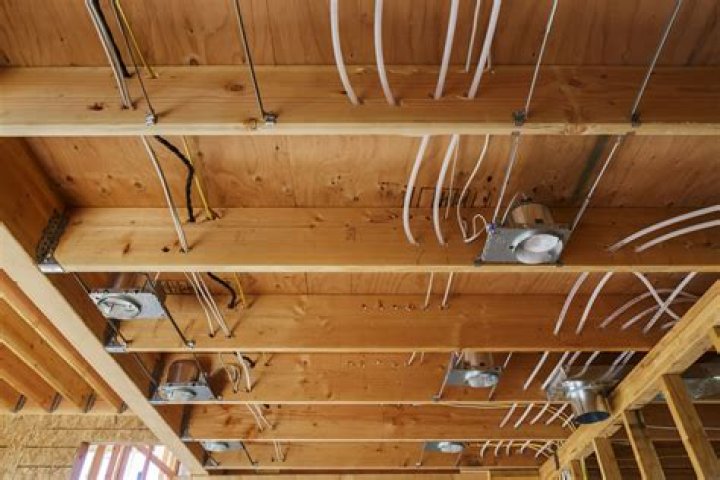

Can I run electrical wire next to plumbing?

You can definitely run wires close to plumbing wires, provided you aren't running a bare or damaged copper wire next to steel pipes. According to the code, you can run plumbing and electrical wires through the same hole, but you need to make sure the wire is well insulated and there is no risk of ruptures.

Can electrical be near plumbing?

If you are worried about the plumbing near the electrical box, you can rest easy. Plumbing and electrical lines, despite their differences, rarely interfere with each other, and there is no overarching rule for space between the two.

Can you run electrical conduit next to water line?

Plumbing pipes and electrical conduit or NM-cable can run side-by-side. There is no minimum separation requirement. For example, electrical conduit and water pipes are only a few inches apart at the top of a water heater.

How close can conduit be to water pipe?

12 inches between water and electric lines. 24 inches between sewer and electric lines. 12 inches between communications and electric lines.

How far apart do electrical and water lines need to be?

Electrical and gas lines need to be at least 24 inches apart from each other. Electrical and water lines need to be at least 12 inches apart from each other.

DIY Bathroom Wiring | How To Run Electrical

How far should electrical be from plumbing?

We will discuss the details of drilling a hole in your wall in a later section. Water and electrical lines should ideally be 12 inches apart, while sewage and electrical lines should be at least 24 inches apart. However, these are figures for commercial construction only.

How far does plumbing have to be from electrical panel?

The National Electrical Code (NEC) does not specifically address plumbing pipe clearance, but requires an area clear of any obstructions that is 2'-6” wide, 3'-0” deep, and 6'-6” high around the front of a panel [NEC 110.26(A)].

Can you put plumbing and electrical in the same trench?

Senior Member. Some utilities here don't allow (meaning: local codes) the water and electric services to be in the same trench. A minimum of 36" is required.

Can electrical wire run next to gas line?

Yes, you can, but should you? When you're running the wire, it might be safe because of the rubber insulation around. But pests may damage the insulation and cause the gas piping to become energized.

How deep do you have to bury electrical conduit?

In general, bury metal conduits at least 6 inches below the soil surface. You may also run them at a depth of 4 inches under a 4-inch concrete slab. Under your driveway, the conduits must be below a depth of 18 inches, and under a public road or alleyway, they must be buried below 24 inches.

Can A water line run above an electrical panel?

Items such as HVAC ducts, gas pipes, water pipes and drain pipes are foreign to the electrical system and, therefore, shall not be installed within the dedicated equipment space. Leak protection, such as a drip pan, shall not be installed within the dedicated equipment space either.

Can water lines run below electrical panel?

Because there are no other rules governing plumbing pipes around a panel, you can conceivably run them vertically along either side of the panel, but in no case should they interfere with the operation of the panel door or block access to the panel, says Spyrka Electric.

Can an electrical panel share A wall with A bathroom?

Answer: No. All electrical conductors, equipment, light fixtures and so on must be identified for use in the operating environment in which they will be installed (indoor dry locations, indoor or outdoor wet locations, hazardous [explosive] location inside a vehicle paint spray booth, etc.).

What is code for buried electrical wires?

Low-voltage (no more than 30 volts) wiring must be buried at least 6 inches deep. Buried wiring runs that transition from underground to above ground must be protected in conduit from the required cover depth or 18 inches to its termination point above ground, or at least 8 feet above grade.

Can you bury wire without conduit?

In most cases, you'll probably use conduit (a hollow tube through which you run individual wires). However, if you only need a power supply (without wires to control lights from inside the house,) you can use a direct burial cable, placed in the soil without conduit.

Can I bury my own cable line?

Depth Requirements for Buried Electrical Cable

Check with local officials to see if you need a permit. Call local utility companies and have them mark existing underground utilities. Decide how much manual labor, or digging, is needed so that you can determine the type of wire to use.

Can Romex go in conduit?

No, you can not run your Romex wiring in conduits.

Can you bury Romex without conduit?

Buried or exposed wiring will need to be listed for its application. Underground feeder wiring can be directly buried without a conduit with a minimum of 24 inches of cover. Any wiring placed inside intermediate metal or rigid metal conduits will require at least six inches of ground cover.

Does electrical wire have to be in conduit?

There are no wires in conduit and they must be installed, or pulled, through the conduit after installation. Rigid conduit is similar to EMT in appearance, but is much stronger. Rigid conduit is used for very large wires, exterior installations and where structural strength is required.

Where is Romex not allowed?

To give you an overview of what the National Electrical Code (NEC) regulations state, Romex wire shouldn't be left exposed anywhere in the house, be it the basement, attic, or the home itself. In other words, the installation above is not compliant with the relevant codes.

Can PVC be used for electrical conduit?

PVC is also used to produce electrical conduit. While regular PVC and electrical conduit PVC are both made from the same type of plastic, they are not the same thing, nor should they be used for the same applications. Each should only be used as it is intended and not interchangeably.

Can Romex be exposed in garage?

Exposed NM, NMC and NMS cable are allowed to be run in “one- and two-family dwellings, their attached or detached garages, and their storage buildings” by the National Electrical Code (NEC 334.10 and 334.15).

Can you bury yellow Romex?

Romex cannot be used in the situation you describe as buried conduit is considered a wet location. You must use conductors such as THWN.

Can you bury electrical wire in PVC?

General Notes on Burying Wire

If you ever want to use rigid metal conduit or even EMT in place of PVC, you can. Typically, we use gray 3/4-inch PVC for a single line. In addition, while the required burial depths listed above should be generally accurate—check local building codes first.
