Is stitch welding stronger than spot welding?

A properly welded joint formed by resistance welding can easily be stronger than the material from which it is formed. Stitch welding is the typically the default choice for most applications because it minimizes distortion and saves a little money, but there are times when seam welding yields a better result.

Is a stitch stronger than a solid weld?

It also consumes more filler and will usually take longer than stitching. However, a seam welded joint is inherently stronger than one stitch welded simply because more of the metal is fused. This also results in a more rigid fabrication. Possibly the biggest argument for seam welding though is when fabricating tanks.

What is the strongest type of welding connection?

TIG – Gas Tungsten Arc Welding (GTAW)

TIG welding produces the strongest type of weld.

How strong is spot weld?

The test, In this case, illustrated that the spot weld had an Ultimate Tensile Strength of 3261Kg compared to 1294Kg for an 8mm MIG plug weld.

How does seam welding differ from spot welding?

Unlike a spot weld that uses a single point electrode, a seam weld uses a rotating wheel electrode that produces a rolling resistance weld. This process is most often used to join two sheets of metal. MIG and TIG welders can be used to do seam welding.

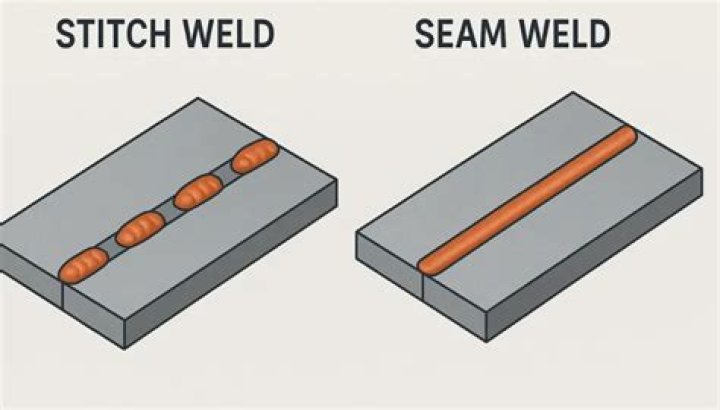

Stitch Weld vs Solid Weld

What are stitch welds used for?

Stitch Weld

It is used to prevent heat distortion and to also reduce the cost of welding if a long continuous weld is not necessary. There are two common types of stitch welds, fillet weld and butt joint weld.

What is stitch welding?

: resistance welding in which the weld is made linearly (as between rotating wheels) by a series of spot welds that are spaced rather than overlapping (as in seam welding)

Can a spot welder shock you?

Can I get electrocuted by touching the weld cables or electrodes? – Luckily, No. For all concerned, the voltage for all resistance welding technologies is below the level where there would be a concern about electric shock. This includes CD, AC, DC, and HF models.

How thick can you spot weld?

Spot welding is primarily used for joining parts that are normally up to 3 mm in thickness. Thickness of the parts to be welded should be equal or the ratio of thickness should be less than 3:1. The strength of the joint depends on the number and size of the welds. Spot-weld diameters range from 3 mm to 12.5 mm.

What are the benefits of spot welding?

The main advantages of spot welding are that it does not require any filler metals and gases for joining the metal pieces. It is easy to join the metals using this type of welding process and does not require any high skilled labours or technicians.

Which welding joint is the weakest?

The minimum cross-section of the fillet is at the throat. Therefore the failure due to tensile stress occurs at the throat section. Thus the weakest area of the weld is the throat.

Which type of welding is best?

Gas Tungsten Arc Welding (TIG) is probably the highest quality and most expensive of the arc welding processes. It is generally performed manually; however, there are some automatic applications. A good welder can deposit ½ pound of weld metal per hour at about 1-to-3-inches-per-minute travel.

Is MIG welding stronger than stick?

When done correctly, stick welding produces stronger joins than MIG welding.

How long should a stitch weld be?

Stitch Weld

Each weld bead is two units long. The distance between the center of one weld bead to the next is six units. The total welded section length is 14 units from the start of the first weld to the end of the last weld.

What is a skip weld?

Skip welds are welds that are not completely welded the entire length. A segment of the joint is welded followed by a segment not welded. This alternating of welded and not welded segments continues along the joint as needed. Skip welds are defined by a specific length of weld, and a pitch dimension.

What is a plug weld?

A weld made in a circular hole in one member of a joint fusing that member to another member. A fillet-welded hole is not to be construed as conforming to this definition.

Can wires be spot welded?

Most of the time, spot welding is used when a single layer of wire mesh needs to be joined to itself. This type of welding can be seen in our sock screen gaskets, which are spot welded at the overlapping seam in order to retain its cylinder-like seam.

How long does a spot weld take?

Forcing a large current through the spot will melt the metal and form the weld. The attractive feature of spot welding is that a large amount of energy can be delivered to the spot in a very short time (approximately 10–100 milliseconds).

Is TIG welding the same as spot welding?

Though the processes of spot welding and TIG welding seem drastically different, they share enough commonalities that a TIG welder can indeed be used to produce spot welds. Namely, both processes use an electric arc instead of an open flame to melt metal to create a join.

Is spot welding easy?

Spot welding can also be difficult due to various factors. The most common ones include using galvanized steel and aluminum. These materials require high electric current levels to weld and a longer welding time, unlike welding steel. The other factor is the inappropriate thickness of the welding materials.

Can I hold a piece of metal while welding it?

Touching the workpiece does not present a risk of electric shock unless you are also touching the electrode, and vice-versa. Like all forms of welding though, you can burn yourself due to the object still being hot.

Can you weld while standing in water?

Always keep the hands and the body dry during a welding operation. Avoid standing in water, on wet surfaces, or working with wet hands or wearing sweaty garments. Do not dip energized (hot) electrode holders in water.

How do you size a weld stitch?

The length of the unwelded space is simply the pitch minus the weld segment length. So, if you have 3-8 to the right of the fillet weld symbol, it means that the minimum weld length of each segment is 3 inches and the maximum unwelded space between the adjacent fillet weld is 5 inches.

What is spot and seam welding?

Spot, seam and projection welding Spot, seam and projection welding are carried out by electric resistance heating two overlapping metal parts which are pressed together by copper or copper alloy electrodes. Local melting occurs at the faying surfaces and an internal weld nugget is formed.

What is lap welding?

Lap welding joints are essentially a modified version of the butt joint. They are formed when two pieces of metal are placed in an overlapping pattern on top of each other. They are most commonly used to joint two pieces with differing thicknesses together. Welds can be made on one or both sides.
