Should I put rebar in my concrete driveway?

Rebar is not necessary for every concrete project. The general rule of thumb is that if you are pouring concrete that is more than 5 inches in depth, you are probably going to want to add in some rebar to help reinforce the entire structure.

Do you need rebar for a 4 inch slab driveway?

For 4” concrete slabs used for driveways and patios, #3 rebar is common. Driveways that will support daily traffic by heavy trucks frequently use 1/2″ or #4 steel bar. Pads that bridge culverts or ditches or cantilever may require #5 rebar or a tighter grid placement of #4.

Does a concrete driveway need reinforcement?

Concrete roadways, platforms, and structures typically require some type of reinforcement to help reduce cracking and prevent architectural failure. Most often, rebar (steel bars) are embedded into the concrete before it hardens. However, galvanized panels of welded wire mesh can be used as an alternative to rebar.

Is rebar used in concrete driveways?

Using Rebar

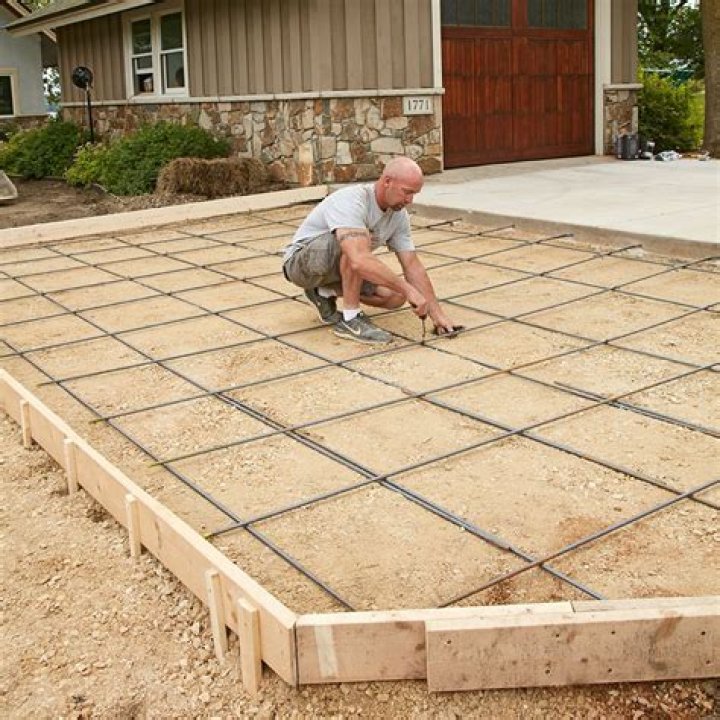

Rebar is best used in a driveway for which 5-6 inches of concrete can be poured. This is because rebar is comparatively thicker than galvanized mesh reinforcement. The proper way to use rebar reinforcement is to ensure that it is laid in the center or slightly above the center of the slab's thickness.

What happens if you don't put rebar in concrete?

What Happens If You Don't Use Rebar? Without rebar, concrete becomes extremely weak to tension forces; these would be forces that pull and twist the concrete. As the concrete flexes, it forms cracks; with rebar in the structure, the cracks can move throughout the entire piece of concrete.

Watch This Video To Learn More About Using or Not Using Rebar For Concrete Driveway

Does a 10x10 concrete slab need rebar?

Do concrete patios need rebar? Even though it's possible to build a concrete patio without rebar, it's not recommended. All concrete is subject to cracks, but rebar holds all the cracks together and keeps the slab level and even. Without rebar, the cracks would become quite wide and the concrete would become uneven.

How thick should driveway concrete be?

As for thickness, non-reinforced pavement four inches thick is standard for passenger car driveways. For heavier vehicles, a thickness of five inches is recommended. To eliminate standing water, the driveway should be sloped towards the street a minimum of one percent, or 1/8 inch per foot, for proper drainage.

What size rebar do I need for a driveway?

The rebar size #3 is used for driveways and patios. For walls and columns, #4 rebar size should be used as they require more strength. It is better to use the #5 rebar size for footers and foundations.

Is rebar better than wire mesh?

Support: Considering the support constraint, rebar is undoubtedly stronger than wire mesh. Several constructors consider rebar for domestic jobs. For thicker driveways and locations that involve greater traffic, rebar is always a good option to consider.

How much weight will a 4 inch concrete driveway support?

Concrete driveways are typically poured four inches thick, giving the concrete driveway enough strength to withstand loads of regular vehicles (up to approximately 8,000lbs).

How much rebar do I need for a concrete driveway?

Reinforcement can be either wire mesh or ½-inch (#4) steel rebar. Use wire mesh for driveways that are 4 to 5 inches thick, and rebar for those that are 5 inches or more. Place rebar in a grid pattern with a spacing between bars of approximately 12 inches.

Do you need gravel under concrete driveway?

You do need gravel under a concrete slab, footing, or patio. Gravel provides a solid foundation for your concrete as it can be compacted. It also improves drainage, preventing water from pooling beneath the concrete.

How far apart should rebar be in concrete?

Consult manufacturers' literature for maximum chair and other support spacing and use a 12-inch minimum reinforcement spacing so workers can avoid walking on the reinforcement.

Can I use chicken wire to reinforce concrete?

Chicken wire or wire mesh can be safely used as a reinforcement in concrete when the concrete is not used in structural or high-weight areas. The wire mesh or chicken wire can add stretching strength that concrete does not have, giving the concrete rigidity when facing specific pressures.

Is fiber in concrete better than rebar?

Polymer fiber reinforcement offers better corrosion resistance compared to steel reinforced concrete.

What can I use instead of rebar?

Alternatives to Rebar Concrete Reinforcement

• Why let your frustrations with rebar continue when there are many other alternatives. ...
• Stainless Steel Concrete Reinforcement. ...
• Engineered Bamboo Reinforcement. ...
• Glass fiber reinforced polymer (GFRP) Rebar. ...
• Plastic Fiber. ...
• Helix Micro Rebar Concrete Reinforcement. ...
• Many Options.

Does a garage concrete slab need rebar?

A garage slab or the garage concrete floor does not need rebars, provided it is 4” or less in thickness. Other forms of concrete reinforcement will however reduce cracks. Rebar is certainly required if the garage slab is 6” or thicker. This is the short & sweet answer.

Is fiberglass rebar as good as steel?

Glass fiber reinforced polymer (GFRP) was used as an alternative material to the steel rebar. It is lightweight, no-corrosion, superior tensile strength, and high mechanical performance. Installation of the GFRP rebar is similar to steel rebar, but with less handling, transporting and storage problems.

Does rust affect rebar?

Having rust on the surface of the rebar could cause further corrosion of the reinforcements. Further, placing concrete with the rust in the reinforcement, lose the bond between the concrete and reinforcement bar. It could lead to reducing the bond strength.

Does rebar make concrete stronger?

Rebar adds a great deal of strength to a concrete structure. Generally it's used in large scale projects where concrete needs a lot of strength to keep it from cracking or breaking apart, such as a wall or foundation.

How long does concrete rebar last?

Early 20th-century engineers thought reinforced concrete structures would last a very long time – perhaps 1,000 years. In reality, their life span is more like 50-100 years, and sometimes less.

Is 3000 psi concrete good for driveways?

3,000 PSI. The residential workhorse of concrete, 3,000 PSI can be used for driveways, patios and sidewalks. Its durability will help shrug off the freeze-thaw cycle of harsh winters. This is a fine choice for any general construction use.

Is it better to pour concrete in summer or winter?

Experts agree—the best temperature to pour concrete is between 40° – 60°F. When temperatures dip below 40°F, the chemical reactions that strengthen concrete slow down and can lead to weaker concrete.

How long should a concrete driveway cure before driving on it?

After One Week – After 7 days, it's OK to drive on your new concrete with normal passenger vehicles. Avoid driving near or across the edges of the driveway, though, since those areas are still weaker.
