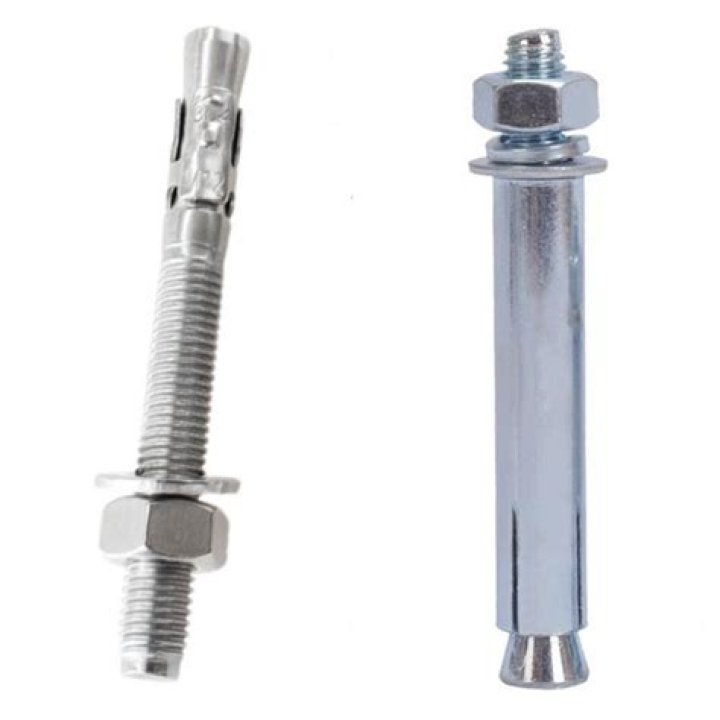

Whats better sleeve or wedge anchor?

Sleeve anchors are fairly simple to use and are primarily used in brick or block. They can be used in concrete but are not considered as strong as a wedge anchor. So, for light to medium holding applications, a sleeve anchor is a good choice.

What type of concrete anchors are the strongest?

Wedge anchors are typically the strongest anchors, but not every application requires a heavy-duty anchor. Some will do just fine with a plastic wall anchor or a nail-in version.

What is a sleeve anchor used for?

Sleeve anchors are by far the most versatile fastener and can be employed in a plethora of projects, including those that include concrete as the base material. In fact, they are commonly utilized in securing heavy weighted items of up to 200 pounds to a concrete surface.

Are sleeve anchors permanent?

Anchor Bolts (Shield Anchors)

The Drill-Out Anchor Bolt is a "One-way" fixing which is designed to be permanent. It is installed using a standard Hex Allen Key (not supplied with the bolt), but once fully tightened, the Drive Socket in the head of the bolt must be drilled out, leaving no way to undo the bolt again.

Can you use sleeve anchors in brick?

Sleeve anchors are versatile and can be used in solid brick, brick with holes or the mortar joint. Sleeve anchors provide the widest variety of head styles and they come in round slotted head, flat Phillips countersunk, acorn head or the standard hex nut.

Concrete Anchors: Which ones are better?

Are sleeve anchors reusable?

Concrete Sleeve Anchor Applications

The internal bolt of Denali's masonry sleeve anchors is removable and reusable in the same anchor sleeve, which makes it suitable for numerous applications. Some of these applications, include: Machinery mounting.

Are wedge anchors removable?

To be removed, wedge anchors can be sawed off with a hacksaw or cutoff wheel at the surface of the base material. Tapcon® Concrete Screws: Tapcons are removable because they are threaded screws that tap threads into the concrete, brick or block.

How much weight will a sleeve anchor hold?

Generally speaking, sleeve anchors fall into the medium-duty territory or up to 200 pounds of weight that can be secured safely.

How deep should sleeve anchors be?

Sleeve anchors require a hole that is the same diameter as the anchor being installed. For example, a 3/8” anchor requires a 3/8” hole to be drilled. The depth of the hole that is drilled into the base material must be a minimum of 1/2” deeper than the anchor will penetrate.

Are wedge anchors strong?

Wedge Anchors: Extremely strong for heavy-duty use. Length is measured from end to end. Stainless-steel expansion clip resists corrosion.

Are Tapcons better than wedge anchors?

Tapcon and wedge anchors are pre-installed mechanical anchors that attach structural objects to concrete structures. However, the wedge anchor suits heavier-duty applications, vs the Tapcon anchor that typically serve lighter deployments. Another difference between them is in their fastening method.

How much weight can a concrete anchor hold?

These concrete anchor bolts, or bolt anchors for wood, are available in several sizes and will hold up to 200 lbs. The sleeves pinch the sides of the predrilled hole and get tighter as you tighten the screw or bolt. Best uses: Concrete, concrete block, mortar and brick.

How deep should wedge anchor be in concrete?

A 5/8” concrete wedge anchor requires a 5/8” hole to be drilled into the concrete. The hole in the concrete needs to be drilled a minimum of 1/2” deeper than the concrete wedge anchor will penetrate into the concrete.

How many wedge anchors do I need?

As a rule of thumb, the space for the nut and washer is equal to the diameter of the wedge anchor being used. For example, if a 2x4 is being fastened to concrete with a 1/2” wedge anchor then the minimum length of wedge anchor would be 1-1/2”(2x4) + 2-1/4”(minimum embedment) + 1/2”(space for nut and washer) = 4-1/4”.

How deep should concrete anchors go?

The hole needs to be drilled 1/4" deeper than the anchor will penetrate. The hole can't be drilled while the fixture is in place due to the fact that the hole is larger than the diameter of the bolt being inserted into it.

Can you use sleeve anchors in drywall?

Offering better holding power than nails and screws, these sleeve type anchors are commonly used to mount fixtures to hollow walls like drywall (wallboard) and wood paneling.

How much weight can drywall anchors hold?

Toggle bolts are the types of drywall anchors that can support up to 50 pounds, while steel hollow-wall anchors have a drywall anchors weight limit of up to 100 pounds.

Is it better to anchor in brick or mortar?

Brick often holds more weight and provides better support compared to mortar. However, if you're working with aged and fragile brick, it may not be the best option for deep holes, heavy objects or expansion-style anchors. Deeper holes and expansion anchors can weaken an already feeble brick.

Can wedge anchors be used in brick?

In the case of what would appear to be solid brick, the wedge anchor should not be used because although the brick may look solid, it may be too porous to meet the requirements needed for installing a wedge anchor.
