Where does Hot wire Go on 3-way switch?

The black "hot" wire enters the switch on the left. Three-way wire(which includes red, black and white wires) runs from the switch on the left to the switch on the right, with the white wire carrying ground and the red and black wires carrying the output from terminals in the left switch.

Does it matter which wire goes where on a 3-way light switch?

It makes no difference which traveler wire goes to which traveler terminal on the switch; the traveler terminals are interchangeable. Note that the terminal wires also are considered "hot" because they carry power when the switches are on.

Does it matter where the hot wire goes on a switch?

It doesn't matter as long as you do it the same on both switches. So, if you connect it to the upper right terminal on one switch, connect it to the upper right terminal on the other switch. Connect the second traveler wire to the terminal opposite the red wire terminal.

How many wires are hot in a 3-way switch?

The two hot wires of three-wire cable connect to a pair of brass-colored traveler terminals on each switch. The fixture's hot wire connects to the second switch's common terminal.

What color wire goes to the black screw on a 3-way switch?

Tighten the terminal screws. Connect the ground wire to the green screw, then connect the wire marked common to the black or dark colored screw. Connect the two remaining traveler wires to the two brass or light colored screws.

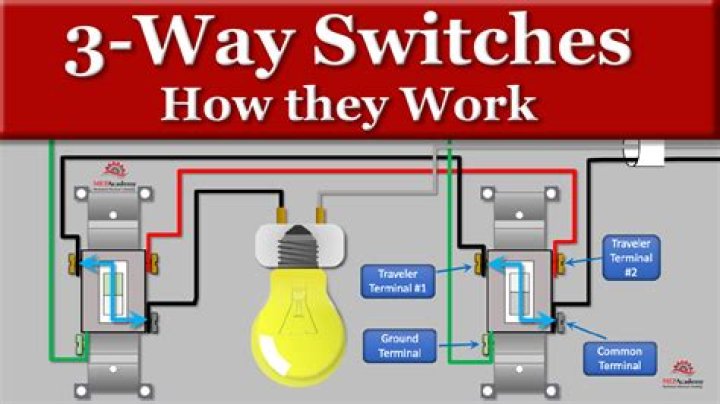

3 Way Switches Explained - How to wire 3 way light switch

What does black screw on 3-way switch mean?

This screw serves one of two purposes depending on where it is positioned in the circuit run: Either it accepts the incoming black (hot) wire from the power source, or it connects to the black (hot) wire that leads onward to the light fixture.

Are all 3 wires hot on a 3-way switch?

OK, so this is how 3-way switches work.

All the wires on each switch are "hot" at one time or another.

What happens if you wire a switch backwards?

This makes things like lamps and many appliances more safe to operate. But here's the catch: If you connect the circuit wires to the wrong terminals on an outlet, the outlet will still work, but the polarity will be backward.

Does it matter where black and white wire goes on light switch?

A standard single pole light switch will simply require you to attach the black (load) wire into it, and then the black wire leaving the switch and to your lights. The switch serves to cut the power from reaching the light switch. The white or neutral wire bypasses the switch and goes straight to your lights.

How do you know which black wire is hot?

Place the prong of the multimeter's black wire on the bare metal on the end of a white wire, then read the meter. If you get a reading, the black wire is hot; if you don't, the black wire isn't hot.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means. In some cases, there will be small writing on the wiring case.

Can you wire a 3 way switch wrong?

One of the most common problems that homeowners face when tackling this project themselves, is improper wiring, which happens when the circuit wires are connected to the wrong screw terminals. It's incredibly easy to accidentally confuse the wiring of a three-way switch when you're performing a replacement at home.

What happens if you mix up the hot and neutral wires?

This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it's usually an easy repair.

Why do I have 3 hot wires?

The reason for multiple hot/neutral wires for one outlet is that the outlets are daisy-chained together. This means hot/neutral is only coming from one of the wires and it is being sent to the other wire.

Which wire goes on the gold screw?

White (neutral) goes on the side allocated for the larger prong. Black (Hot) goes on the smaller prong side or white to silver screws, black to gold screws.

Which wire goes to the black screw?

A black or red-hot wire usually connects to a brass-colored screw terminal or black wire lead on electrical devices. A white neutral wire usually connects to a silver-colored terminal or white wire lead.

Does black wire go to copper screw?

The black wire goes to either the brass screw or the hole in the back of the device. Sometimes this wire is red. The green or bare copper wire can be attached to the green screw terminal on the switch or to the electrical box.

What is the red wire in a light switch?

What are Red Wires? Red wires are usually used as secondary hot wires. Red wires are also hot and should be clearly marked to avoid the dangers of electrocution. Red wires are commonly used when installing ceiling fans, where the light switch maybe.

Which wire is the hot wire?

Here's a rundown of electrical wires: The black wire is the "hot" wire, it carries the electricity from the breaker panel into the switch or light source. The white wire is the "neutral" wire, it takes any unused electricity and current and sends it back to the breaker panel.

Is the black wire the hot wire?

Hot wire is identified by its black casing. This is the main color of hot wire for most homes. However, other hot wires can red, blue, or yellow, although these colors can indicate a different function besides powering an outlet.
